Maidstone Community Sports Hub

Related Systems: FiberthermX
Architect: Stephenson & Turner
Main Contractor: Maycroft Construction
Installer: Tararua Roofing Ltd
Project Date: November 2023
Location: Upper Hutt, Wellington

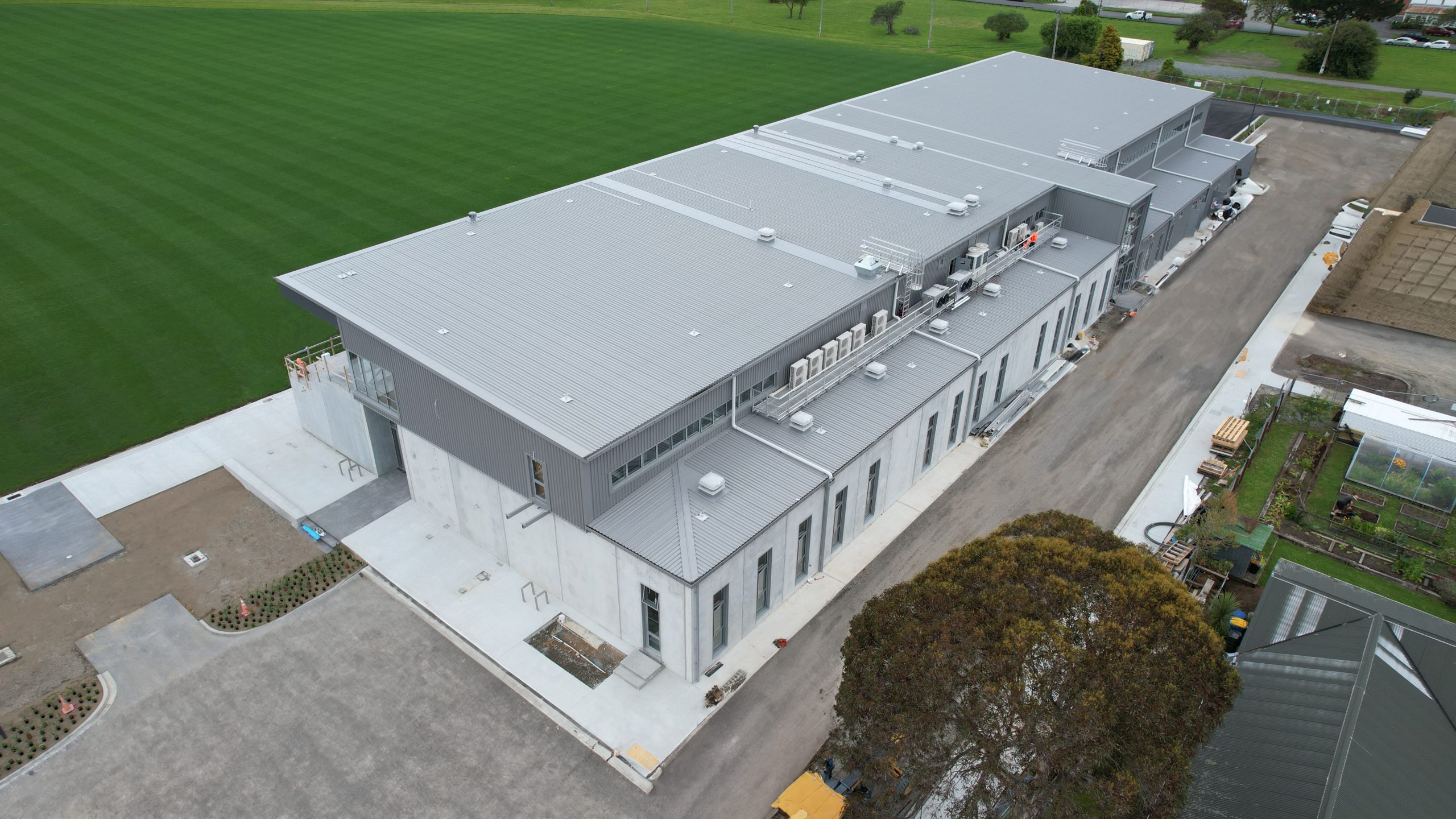

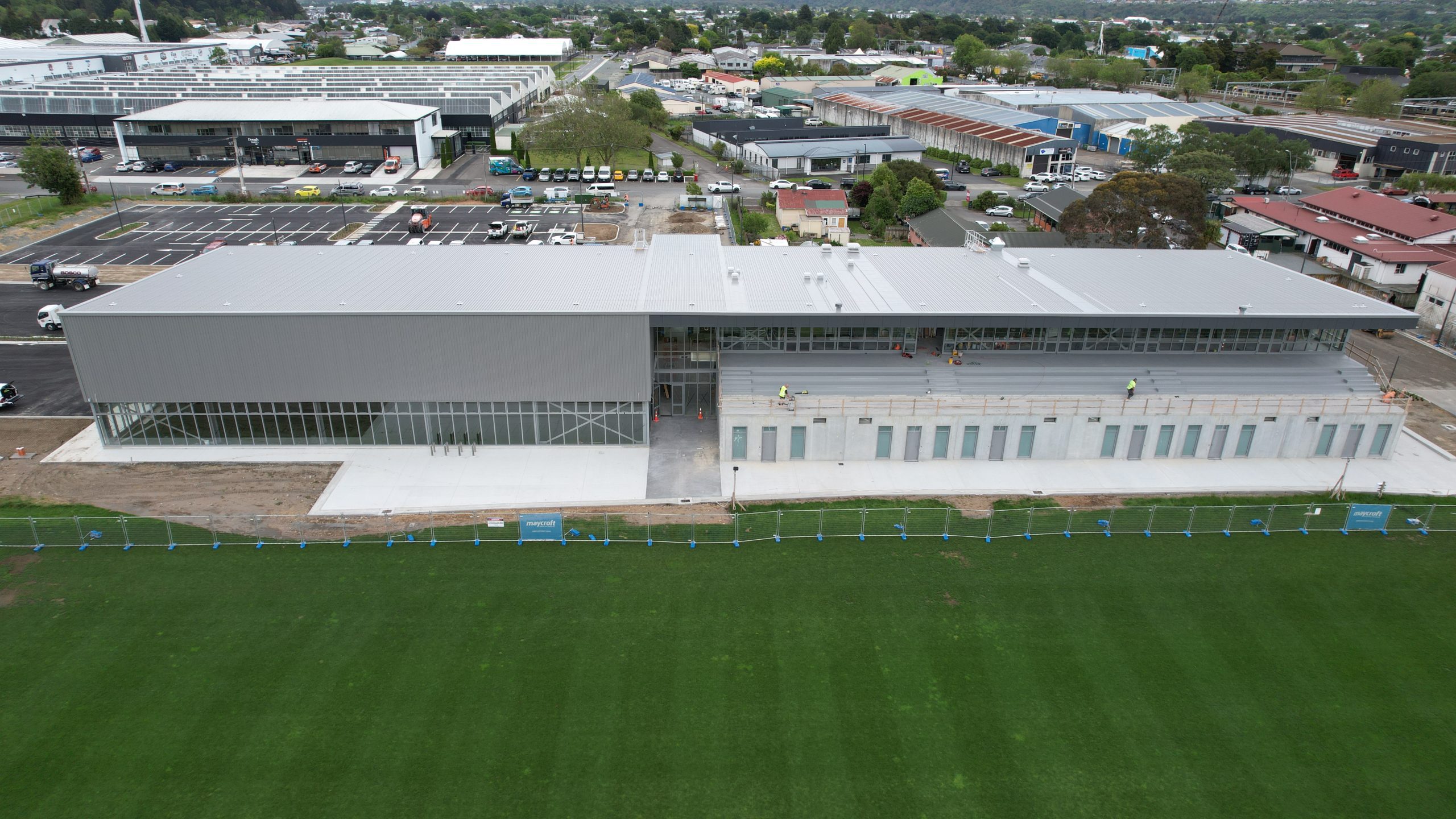

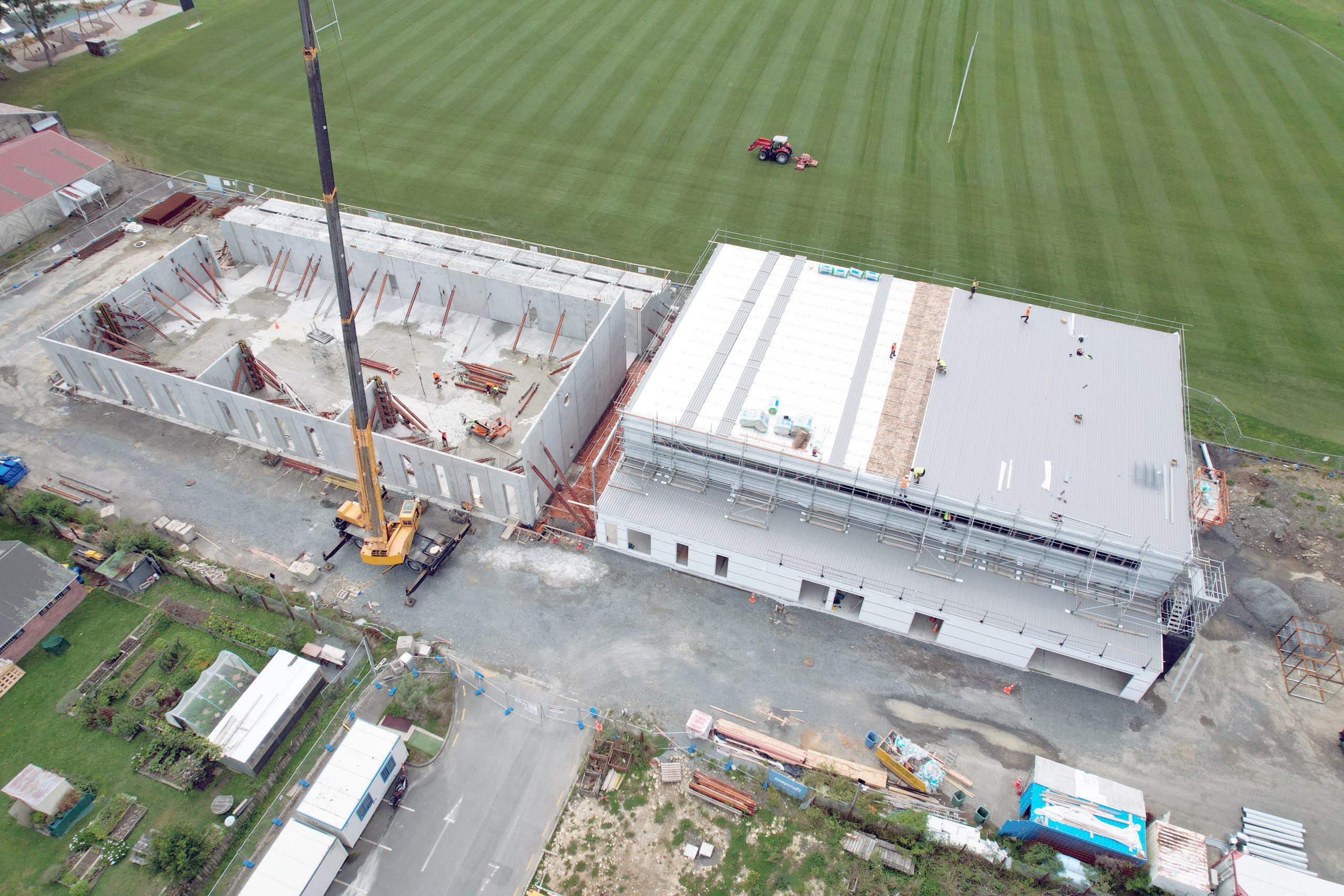

The centrepiece of the park’s redevelopment is a community facility made up of a grandstand, new shared clubrooms, multi-use spaces, and a publicly accessible ‘greenroom’ (a gymnasium space with artificial turf flooring). The plans also include amenities to support the new building and nearby rugby fields.

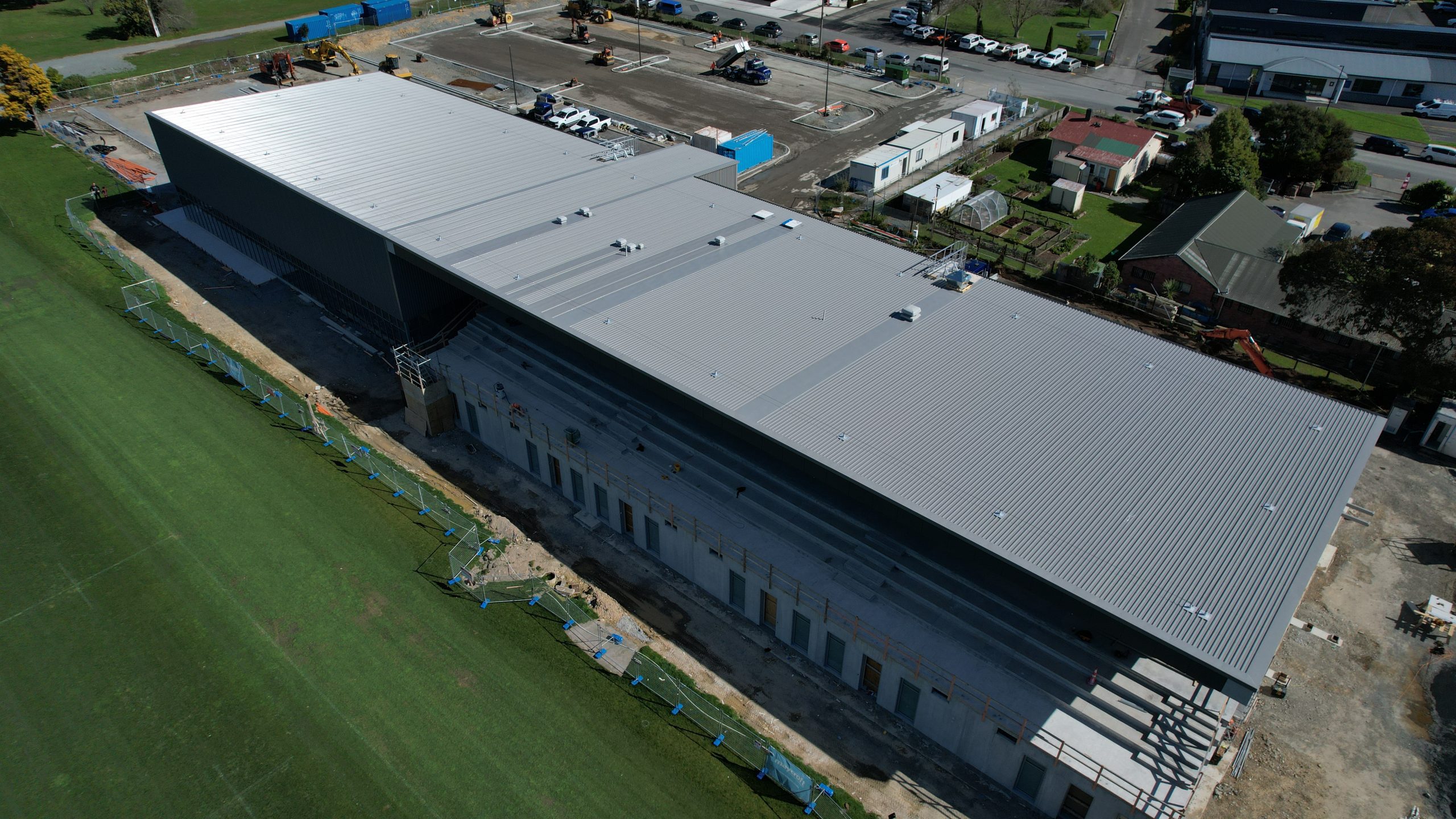

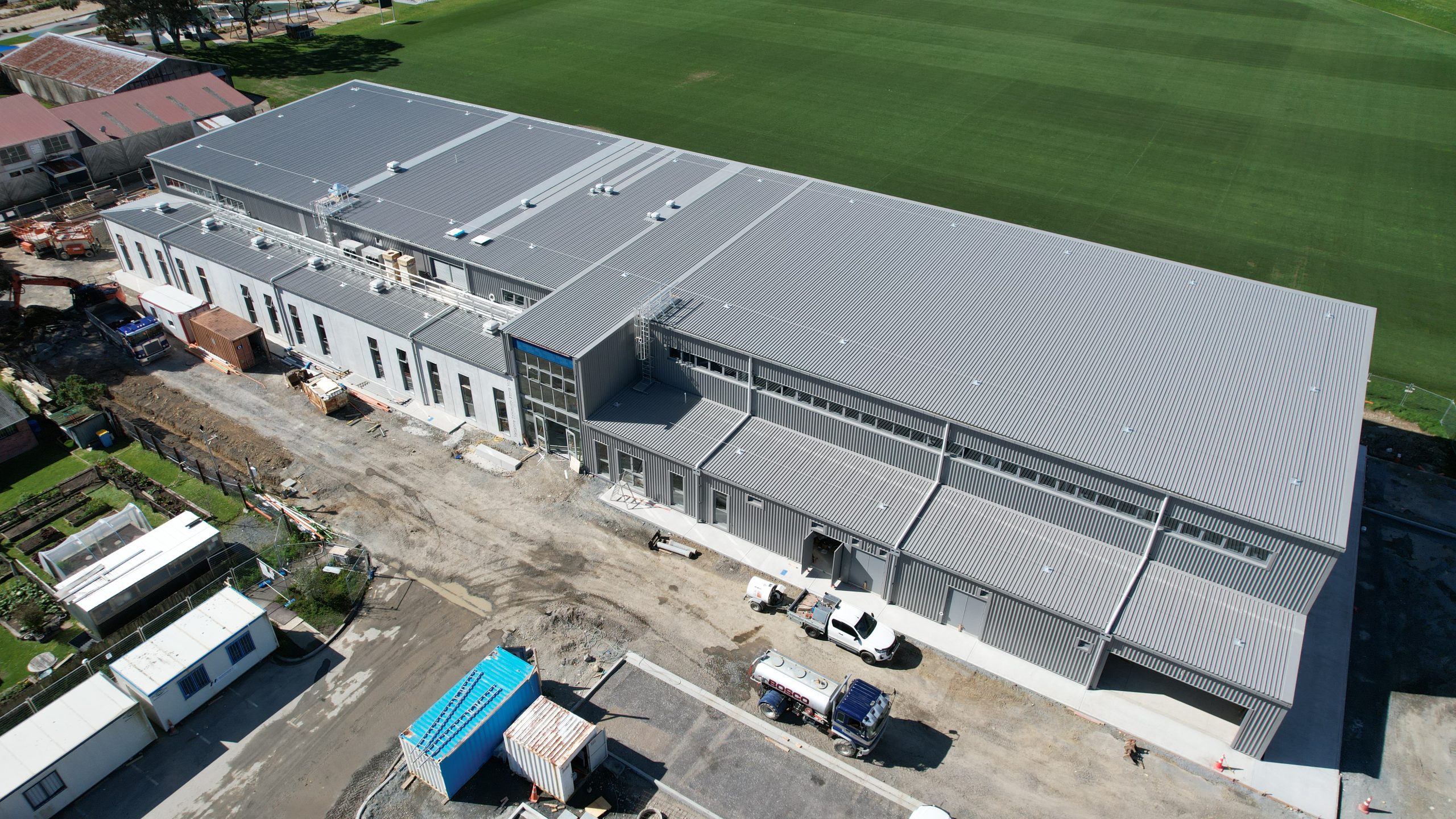

The roof and facade feature RoofLogic Systems. Specifically, the Green Room’s roof system includes a perforated LinerDeck to improve acoustic absorption and regulate the interior’s reverberation time.

SYTEM DETAILS

Lower Roof:

RL LinerDeck (0.55 Zincalume)
RL VCL
RL Stonewool 100mm
RL Underlay
RL TopDeck-T (0.55mm Zinacore)

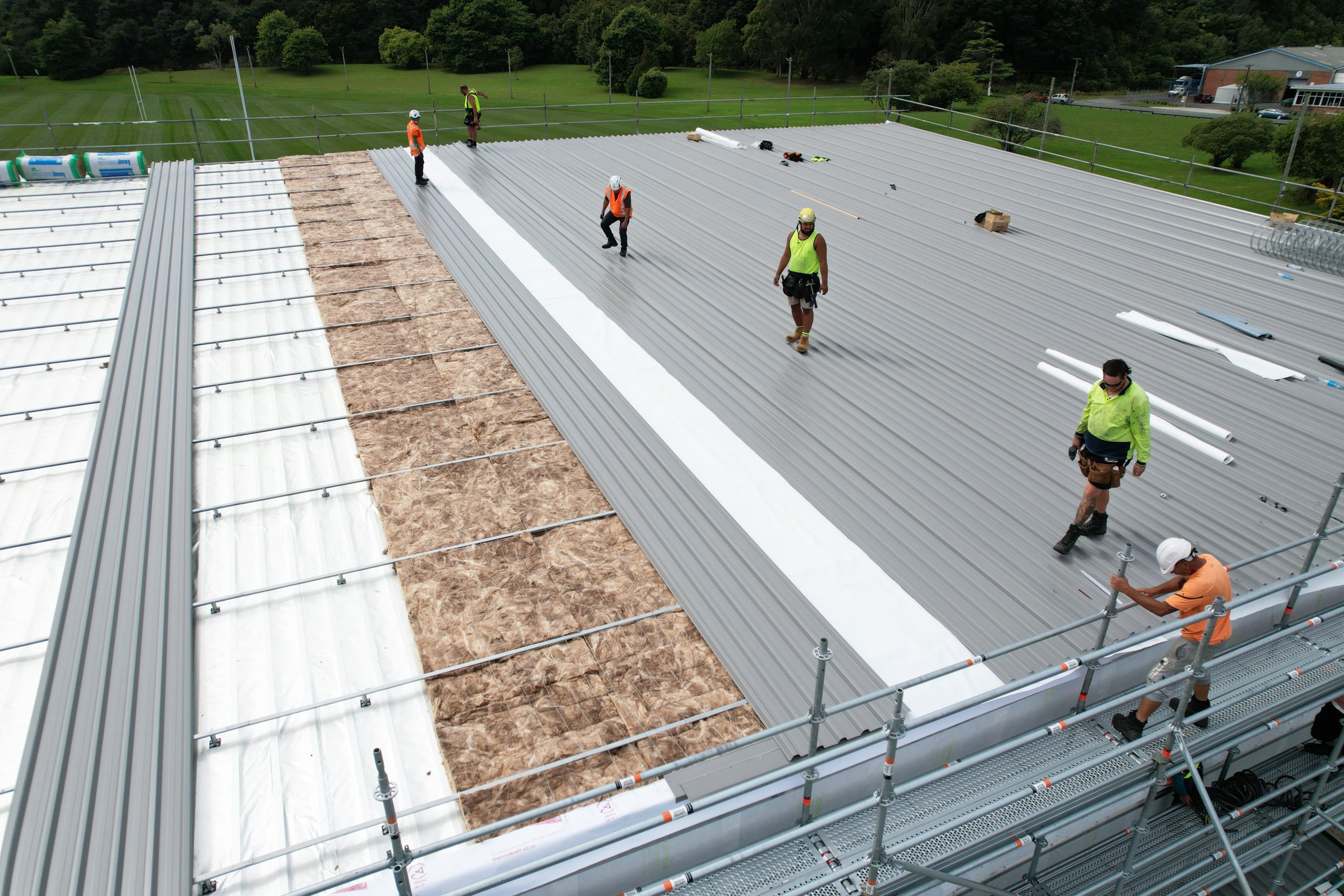

Upper Roof (Green Room):

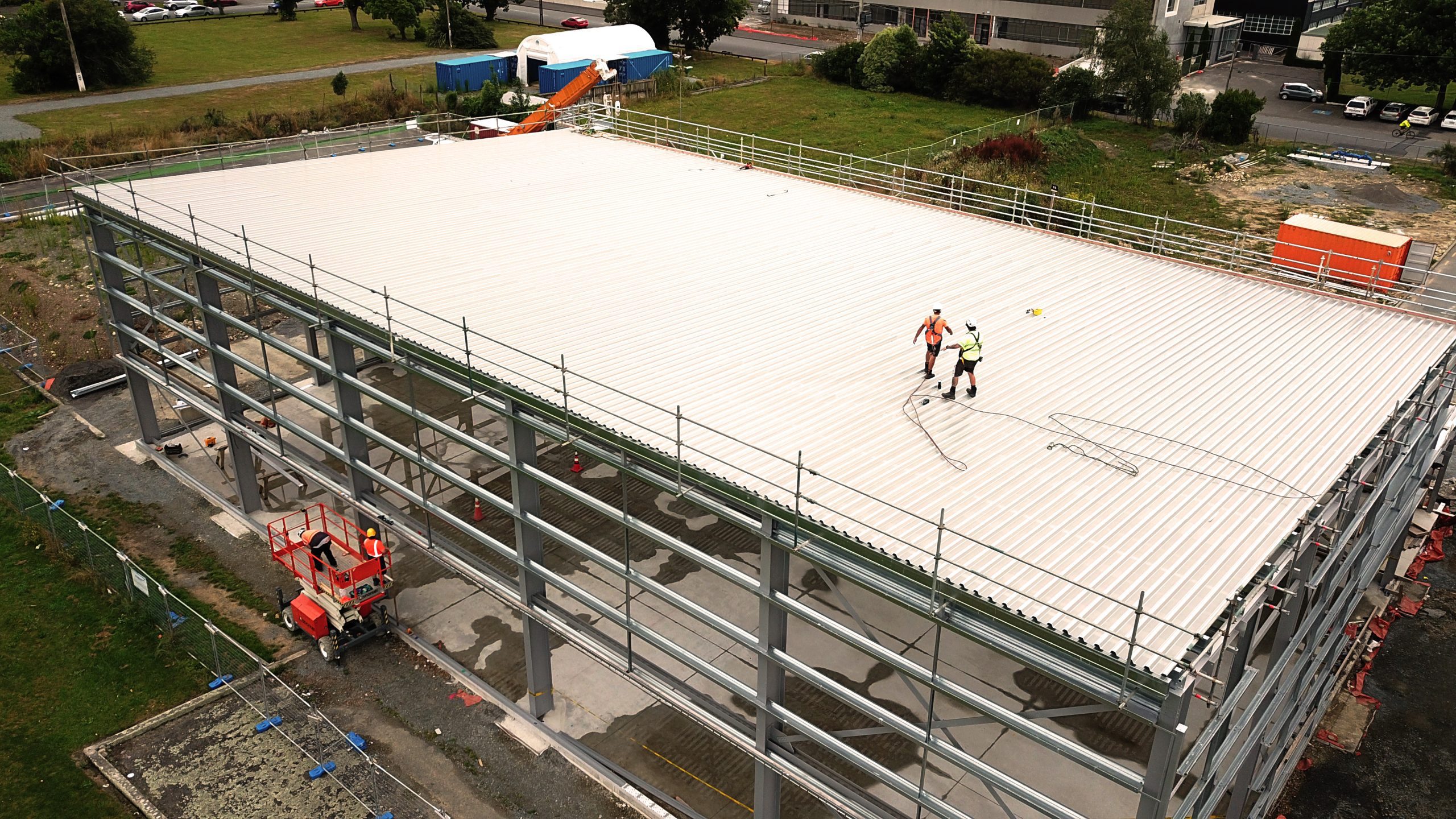

RL Perforated LinerDeck 0.75 Mag (trapezoidal) supplied in white
RL Acoustic Infill (130mm x 40mm)
RL Structural Post Support Bracket
RL VCL
RL 100mm Structural Post and Rail
100mm Fibertherm Insulation
FRU36 Underlay (with Double sided tape)
TopDeck-T (0.55mm Zinacacore)

Upper Roof:

RL LinerDeck (0.55 zincalume)
RL Butyl Tape & Foam Closures
RL 150mm Structural Post and Rail
150mm Fibertherm Insulation
FRU36 Underlay (with Double sided tape)
TopDeck-T (0.55mm Zinacacore)

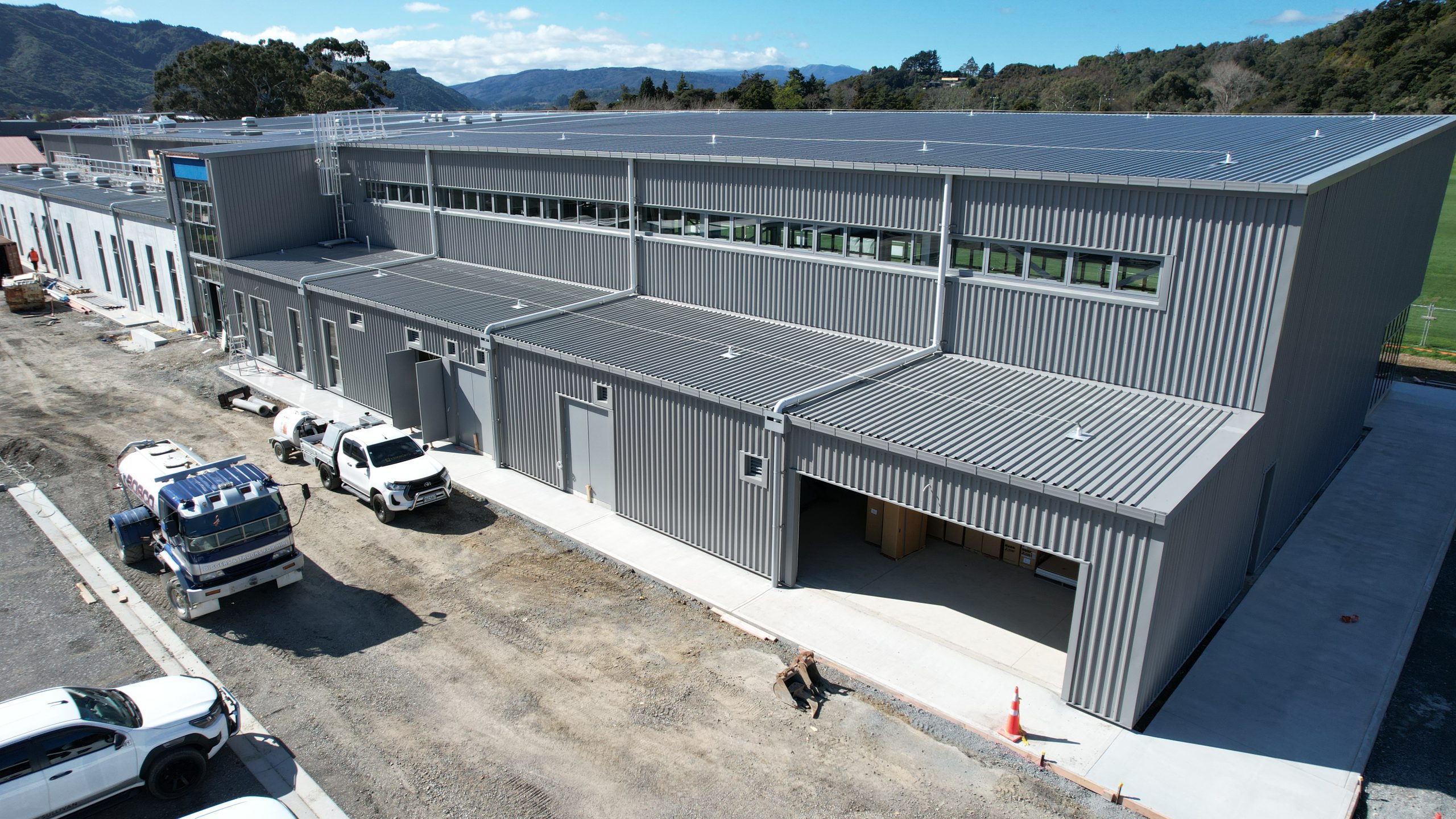

Wall Cladding Over Steel Girts:

RL Cassette Liner Tray (600mm (w) x 100mm (d)) supplied in white
RL Butyl Tape and compression strip)
RL Smart Façade 100mm
RL Rhom Rail
RL TopDeck-T (0.55 Zinacore)
